Suspension and Steering, front and rear sway bars for VW Volkswagen.

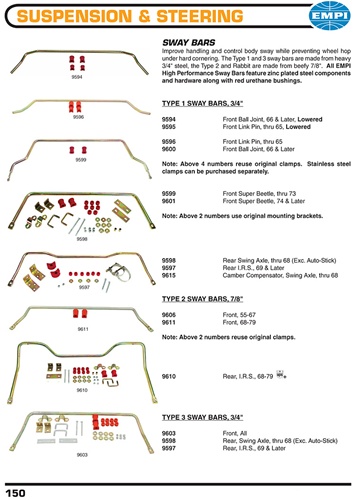

SWAY BARS
Improve handling and control body sway while preventing wheel hop under hard cornering. The Type 1 and 3 sway bars are made from heavy 3/4" steel, the Type 2 and Rabbit are made from beefy 7/8". All EMPI High Performance Sway Bars feature zinc plated steel components and hardware along with red urethane bushings.
TYPE 1 SWAY BARS, 3/4"
9594 Front Ball Joint, 66 & Later, Lowered
9595 Front Link Pin, thru 65, Lowered
9596 Front Link Pin, thru 65
9600 Front Ball Joint, 66 & Later
Note: Above 4 numbers reuse original clamps. Stainless steel clamps can be purchased separately.
9599 Front Super Beetle, thru 73
9601 Front Super Beetle, 74 & Later
Note: Above 2 numbers use original mounting brackets.
9598 Rear Swing Axle, thru 68 (Exc. Auto-Stick)
9597 Rear I.R.S., 69 & Later
9615 Camber Compensator, Swing Axle, thru 68
TYPE 2 SWAY BARS, 7/8"
9606 Front, 55-67
9611 Front, 68-79
Note: Above 2 numbers reuse original clamps.
9610 Rear, I.R.S., 68-79 +
TYPE 3 SWAY BARS, 3/4"
9603 Front, All
9598 Rear, Swing Axle, thru 68 (Exc. Auto-Stick)
9597 Rear, I.R.S., 69 & Later
|
|
|
 |
|
 |
|
|
|
